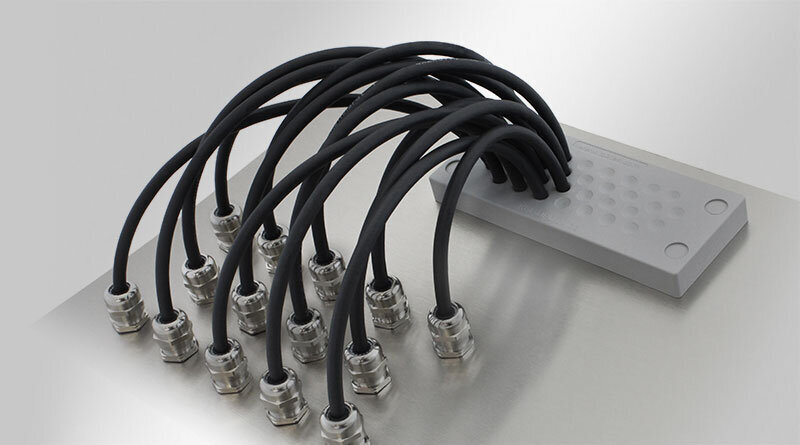

KEL-DPU 24|17 Gy a Part No. a 43934

Name: KEL-DPU 24|17 Gy Part No. 43934
Brand: ORCHID TECHNOLOGY
Price: 3991.04 INR
Availability: InStock

3991.04 INR/Number

Get a Price/Quote

Product Details:

Mounting Type Snap-in or screw mounting
Features Tool-less assembly, high cable density, vibration-resistant seal, flame retardant
Weight Approximately 122 g
Application Cable entry and sealing for machines, control panels, switch cabinets, etc.
IP Rating IP65
Automation Grade Manual
Material Polyamide (PA) (gasket: elastomer)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KEL-DPU 24|17 Gy a Part No. a 43934 Price And Quantity

Price 3991.04 INR/Number
Minimum Order Quantity 10 Number

KEL-DPU 24|17 Gy a Part No. a 43934 Product Specifications

Automation Grade Manual
IP Rating IP65
Application Cable entry and sealing for machines, control panels, switch cabinets, etc.
Material Polyamide (PA) (gasket: elastomer)
Temperature -40C to +100C (short term +140C)
Features Tool-less assembly, high cable density, vibration-resistant seal, flame retardant
Weight Approximately 122 g
Mounting Type Snap-in or screw mounting

Colour Grey (similar to RAL 7035)
Product Name KEL-DPU 24|17 Gy
Maximum cable entries up to 17 cables (3.2 - 20.5 mm diameter)
External Dimensions 120 x 56 mm
Certification/Compliance RoHS, Reach compliant
Part Number 43934
Flammability rating UL94-V0
Cut-out size 46 x 112 mm
Type Multi cable entry plate

Product Description

The KEL-DPU 24|17 Gy - Part No. 43934 is a highlighted multi cable entry plate, decorated for high-density installations holding up to 17 cables (3.2-20.5mm diameter). Engineered in grey Polyamide and laureate for its robust RoHS, Reach, and flame-retardant credentials (UL94-V0), it features a breathtaking IP65 seal for cable entry and vibration resistance. This product supports effortless, tool-less assembly and manual automation, perfect for machines and control panels. Reserve or buy online from trusted distributors, exporters, and suppliers in Germany. External size: 120 x 56mm; mounting: snap-in or screw.

Versatile Application Across Industries

The KEL-DPU 24|17 Gy - Part No. 43934 serves as a reliable solution for cable entry and sealing, used extensively in machines, control panels, switch cabinets, and automation systems. Designed for both indoor and outdoor applications, it accommodates a wide range of cable sizes and provides a secure seal against dust, water, and vibration. Its flexible mounting options ensure a seamless fit for diverse industrial set-ups and electrical infrastructures, making it an indispensable component for varied mediums.

Efficient Handover and Transportation

KEL-DPU 24|17 Gy - Part No. 43934 is available for exchange via multiple FOB ports in Germany, enabling streamlined transportation across global locations. With a robust supply ability, dealers and distributors can arrange quick handover and logistics schedules tailored to your needs. Sample availability ensures you can examine the quality before finalizing bulk exchanges, making the procurement process efficient and reliable for manufacturers, wholesalers, and retailers worldwide.

FAQ's of KEL-DPU 24|17 Gy a Part No. a 43934:

Q: How many cables can the KEL-DPU 24|17 Gy support simultaneously?

A: This multi cable entry plate can accommodate up to 17 cables, each ranging from 3.2 to 20.5 mm in diameter.

Q: What types of applications is this product best suited for?

A: The KEL-DPU 24|17 Gy is ideal for cable entry and sealing in machines, control panels, switch cabinets, and automation systems.

Q: When should I choose this plate for my project?

A: Select the KEL-DPU 24|17 Gy when you require high cable density, IP65-rated protection, and the flexibility of both snap-in and screw mounting for industrial installations.

Q: Where can I buy or reserve the KEL-DPU 24|17 Gy online?

A: You can buy online or reserve the product through authorized dealers, distributors, and suppliers listed by leading German manufacturers.

Q: What is the process for exchanging or obtaining a sample?

A: Samples are available upon request. Contact your supplier to arrange a handover via the specified FOB port, facilitating secure transportation and exchange.

Q: What benefits does the flame-retardant feature offer?

A: The UL94-V0 rated flame retardance provides enhanced safety in demanding environments, protecting against electrical hazards and promoting compliance with strict industry standards.
