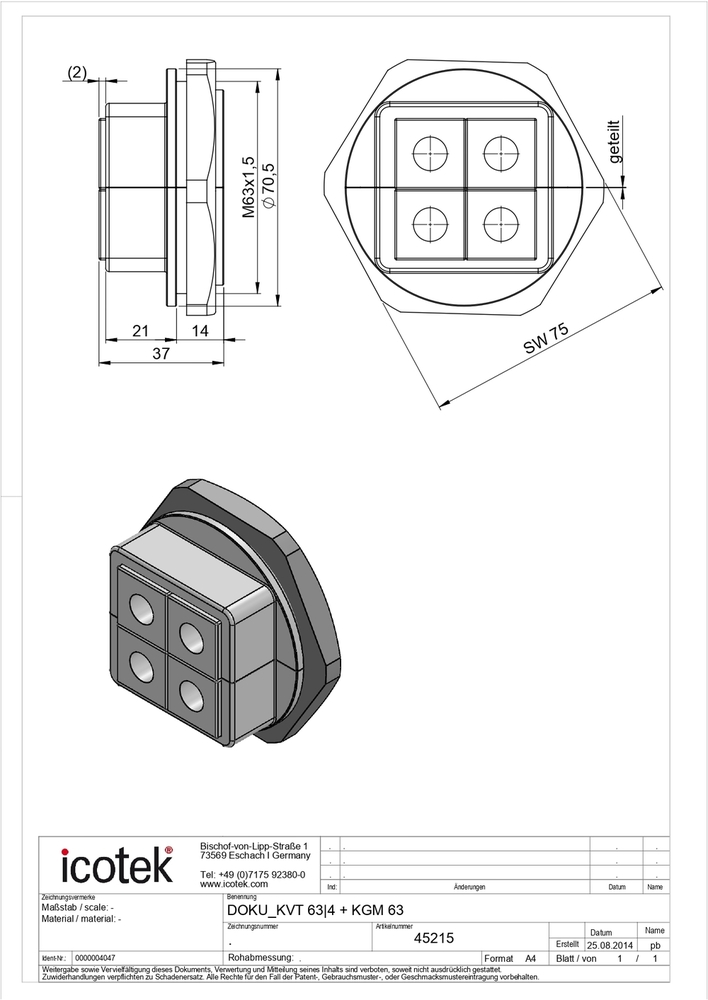

KVT 63|4 Gy a Part No. a 45215

Name: KVT 63|4 Gy Part No. 45215
Brand: ORCHID TECHNOLOGY
Price: 1847.66 INR
Availability: InStock

1847.66 INR/Number

Get a Price/Quote

Product Details:

Mounting Type Panel Mount
Connectivity Type Cable Gland
Features Enables multiple cable insertions through one frame, Split frame for pre-terminated cables, Fast installation without tools
Cable Length Dependent on application
Automation Grade Manual
IP Rating IP54 (with suitable cables and inserts)
Application Cable management, Multi-cable entry for control cabinets
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

KVT 63|4 Gy a Part No. a 45215 Price And Quantity

Price 1847.66 INR/Number
Minimum Order Quantity 05 Number

KVT 63|4 Gy a Part No. a 45215 Product Specifications

Mounting Type Panel Mount
Connectivity Type Cable Gland
Features Enables multiple cable insertions through one frame, Split frame for pre-terminated cables, Fast installation without tools
Cable Length Dependent on application
Automation Grade Manual
IP Rating IP54 (with suitable cables and inserts)
Material Polyamide (PA) Grey (Gy)
Temperature -40C to +100C (Short-term up to +140C)
Application Cable management, Multi-cable entry for control cabinets

Clamping Range Dependent on cable insert size
Number of Cable Entries Up to 4
Cut-out Dimensions 68 x 68 mm
Part Number 45215
Model KVT 63|4 Gy
Colour Grey (Gy)
Frame Size KVT 63
Material Class Halogen-free, Flame-retardant (UL94-V0)

Product Description

Add to Cart the meritorious KVT 63|4 Gy - Part No. 45215, engineered for astounding multi-cable entry solutions in control cabinets. Its dazzling grey polyamide frame ensures value-driven cable management, supporting up to 4 cable entries within 68x68 mm cut-outs. Completely halogen-free and flame-retardant, it delivers long-term safety even at temperature extremes (-40C to +100C). The split-frame, IP54 rating, and rapid, tool-free installation provide both ephemeral setup and enduring performance. Choose the KVT 63|4 Gy for exemplary and reliable manual cable gland applications.

Versatile Applications Across Industrial Surfaces

The KVT 63|4 Gy - Part No. 45215 excels in cable management for control cabinets. Designed for panel mounting, its application surface is adaptable to most metallic and non-metallic panels commonly used in automation and electrical distribution. Its multi-cable entry feature supports manual setup for both new installations and retrofits. Areas of application include factory automation, electrical distribution centres, and machinery setups requiring efficient and meritorious cable organization.

Reliable Supply with Flexible Sample Options

We ensure supply ability for the KVT 63|4 Gy - Part No. 45215 through multiple transportation channels, offering express shipping to your doorstep at the lowest price available. Samples are available upon request, supported by our transparent sample policy to facilitate evaluation before large-scale orders. Dealers, distributors, manufacturers, and retailers in Germany and beyond can access flexible sample solutions, making procurement easy, efficient, and tailored to your needs.

FAQ's of KVT 63|4 Gy a Part No. a 45215:

Q: How does the KVT 63|4 Gy enable fast and tool-free installation?

A: The KVT 63|4 Gy features a split-frame design, allowing users to install or retrofit pre-terminated cables without the need for specialized tools, making the process swift and efficient.

Q: What is the main benefit of using this cable gland in control cabinets?

A: It allows multiple cable insertions through a single frame, saving space and reducing installation time while maintaining an IP54 rating for dust and splash resistance.

Q: Where can the KVT 63|4 Gy be applied?

A: This product is ideal for use in automation control cabinets, electrical distribution centers, and industrial machinery installations where orderly cable management is required.

Q: When should I consider requesting a sample before purchase?

A: Samples can be requested before bulk purchase to ensure compatibility with your specific application and panel cut-out dimensions, adhering to our sample policy.

Q: What materials and surface protection does the KVT 63|4 Gy offer?

A: The body is constructed from halogen-free, flame-retardant polyamide (PA), providing safety, durability, and compliance with stringent German and international electrical standards.
